Start by understanding the device as a system, not a pile of parts.
IN THIS LESSON
✓Recognize the major assemblies inside a Android phone.
✓Understand the difference between modules, connectors and the logic board.
✓Learn why model-specific documentation matters before any repair.
VIDEO POLICY
The video will support the original lesson—not replace it. The written material, safety notes, summary and assessment remain part of the publisher content.
Think in systems, not isolated parts
A Android phone is a compact system made from several subsystems that depend on one another. The display assembly provides the visual and touch interface. The battery stores energy. The main board contains the processor, memory, power-management circuits and many communication components. Cameras, microphones, speakers, antennas, charging assemblies and sensors connect to that system through small connectors and flexible cables.
This matters because a visible symptom does not always point directly to the failed part. A black screen can be related to the display, a connector, power, software or a board-level fault. A phone that appears not to charge can involve the cable, adapter, port, battery, software or internal circuitry. Good repair begins by understanding the system before choosing a replacement part.
What you should identify before opening a device
Before working on any phone, identify the exact manufacturer, model and—when relevant—regional or generation variant. Devices that look nearly identical can use different displays, batteries, screws, adhesives and internal layouts. Never assume that a procedure for one model automatically applies to another.
Look for reliable model information in the operating system when the device still works, on the device label where available, or in manufacturer documentation. Record the model before ordering parts or following a repair demonstration.
Build the habit of documentation
A repair becomes much safer when you document what you do. Photograph the device before opening it. Record visible damage. During disassembly, keep screws and brackets organized by step rather than placing everything in one pile. If you remove a connector or bracket, note its orientation.
This habit is valuable even when the repair seems simple. Modern phones often use screws with different lengths in nearby locations, and forcing the wrong screw or connector can damage the device. Documentation turns memory into a repeatable process.
LESSON SUMMARY
A Android phone should be approached as an interconnected system. Accurate model identification and documentation are the first steps toward safer, more reliable repairs.
MODULE 01
Ready to mark this lesson complete?
Your progress is saved locally on this device during development.
What this lesson is really teaching
This module is designed to build practical understanding of safe workspace preparation, battery awareness, ESD habits, documentation and professional repair mindset. The goal is not to memorize a list of actions. A capable beginner needs to understand why a step exists, what evidence to look for, what can go wrong, and when the safest decision is to stop. Smartphone repair changes from model to model, so the strongest transferable skill is a disciplined process: identify the exact device, observe the symptom, protect the device and yourself, document what you do, make one controlled change at a time, and test the result. That process is more valuable than copying a sequence from a random video because it remains useful when the layout, fasteners, adhesives, connectors or symptoms are different.
Before you touch the device
Begin with information, not tools. Record the model, visible condition, reported symptom and any history that is known. If the phone is functioning, note important features that currently work so they can be checked again later. Look for cracked glass, bent frames, liquid indicators, unusual heat, odor, swelling or evidence of a previous repair. A swollen or damaged lithium-ion battery is not a normal practice item. Do not puncture, bend, crush, heat or improvise around it. Work on a stable, well-lit surface away from liquids, clutter, metal scraps and flammable materials. Keep screws and brackets organized by location because a screw that looks similar can have a different length or purpose.
Think like a diagnostician
A common beginner mistake is deciding which component to replace before confirming the fault. Instead, describe the symptom precisely. Does the device fail to power on, fail to charge, show an image but ignore touch, restart under load, lose audio, or behave intermittently? Different symptoms point toward different systems, and more than one cause can produce a similar complaint. Good diagnosis is a sequence of observations and safe tests. Write down what changes after each test. If a step produces no new evidence, do not pretend that it did. This habit reduces unnecessary part swapping and makes the learning process repeatable.
Model-specific information matters
This course teaches foundations that transfer across many Android phones, but it is not a substitute for service information for the exact model in front of you. Manufacturers revise internal layouts, connector positions, screw types, adhesive patterns, sealing methods and calibration requirements. Before a physical procedure, compare the device with reliable model-specific documentation. If the real device does not match the visual guide, stop and verify the model rather than forcing the next step. A professional repairer treats a mismatch as useful information, not as an obstacle to push through.
Controlled hands-on practice
When practicing safe workspace preparation, battery awareness, ESD habits, documentation and professional repair mindset, slow movement is a feature, not a weakness. Position the device so you can see the area clearly. Support parts instead of letting them hang from flex cables. Use the correct driver and keep it aligned with the fastener. Use non-metal opening tools where appropriate and keep insertion shallow unless model-specific documentation explicitly shows otherwise. Never use additional force simply because a component has not moved. Resistance can indicate a hidden screw, adhesive, a bracket, a cable or an incorrect assumption. Pause, inspect and reassess.
How to read the step-by-step visuals
The illustrations beside the steps are learning aids. Read the text first, then inspect the visual, then explain the action to yourself before performing anything on a real device. Ask three questions: what am I trying to accomplish, what part must be protected, and what would make me stop? This turns a picture from decoration into a decision-making tool. For exact physical repairs, supplement the learning illustration with properly licensed photographs or authoritative model-specific references that show the actual hardware.
Mistakes beginners should avoid
Avoid mixing screws, pulling on flex cables, prying deeply without knowing what is underneath, working while the device is powered, using excessive heat, improvising with unsuitable metal tools, and assuming that every phone opens the same way. Another important mistake is testing only the repaired feature. A successful repair can still introduce a new fault elsewhere. Final testing should cover the systems that were disturbed during the work as well as the original complaint. If a device behaves unexpectedly after reassembly, do not repeatedly force it closed; reopen methodically and inspect your last changes.
Build a repeatable workflow
Use the same high-level workflow every time: intake and identify, inspect, make safe, document, diagnose, plan, perform the minimum justified intervention, reassemble carefully, test, and record the outcome. Repetition of a good workflow builds confidence without encouraging overconfidence. Confidence in repair should come from evidence and successful checks, not from speed. Speed develops naturally after correct habits become consistent.
What competence looks like after this module
After studying this lesson, you should be able to explain the core ideas behind safe workspace preparation, battery awareness, ESD habits, documentation and professional repair mindset without reading from the page. You should be able to describe the safety checks you would perform, identify the information you still need for a specific model, organize a basic work sequence, and recognize situations that exceed beginner-level practice. Being capable does not mean attempting every fault. A capable learner knows both how to proceed and when professional equipment, board-level expertise, battery handling procedures or manufacturer-specific service information are required.
Practice exercise
Use a powered-off practice device or a non-invasive observation exercise. Write a short intake note containing the exact model, visible condition and reported symptom. Create a simple screw/parts map on paper. Without opening the device, identify where you would search for model-specific instructions and list the safety questions you need answered first. Then describe your planned sequence in your own words. This exercise may seem simple, but it trains the planning discipline that prevents many avoidable mistakes.
Knowledge check before moving on
Before marking the lesson complete, answer these questions in your own words: Why should you identify the exact model before following a repair procedure? What kinds of resistance should make you stop rather than apply more force? Why is a record of pre-repair functions useful? What is the difference between observing a symptom and guessing a failed component? Which situations would make you seek qualified assistance? If you cannot explain the reasoning, review the relevant section before continuing.
Safety and scope reminder
Smartphone repair can involve sharp broken glass, heat, electricity, chemicals and lithium-ion batteries. Damaged batteries can create serious fire and injury hazards. This educational material does not make every procedure appropriate for every learner or device. Do not perform work that exceeds your training, tools, workspace or ability to control the risk. For board-level work, severely damaged batteries, unknown liquid damage or other high-risk conditions, use qualified professional assistance and appropriate service procedures.
Why documentation improves repair quality
Documentation creates a baseline and makes troubleshooting less dependent on memory. Before service, note the complaint and condition. During service, record unusual findings and the location of parts that may be easy to confuse. After service, record the tests performed and their results. Photos can be useful when legally and appropriately taken, especially for cable routing and bracket placement. A simple record also helps you learn from mistakes: if the same type of fault appears again, you can compare evidence instead of starting from zero.
Accuracy is more important than speed
Online repair videos often compress a long job into a few minutes, which can create the false impression that a beginner should move quickly. Editing removes pauses, inspections, tool changes and failed attempts. In real learning, those pauses are valuable. Take time to confirm alignment before pressing a connector, to inspect a screw before turning it, and to compare the device with the reference before lifting a part. A slow correct action is far cheaper than a fast damaged connector, torn cable or punctured battery.
Use the video as reinforcement, not a substitute
Each module is designed around one focused video because the learner should not need to jump through a playlist to understand the core lesson. Watch the video once for the overall flow, study the written explanation and visuals, then watch relevant portions again while reviewing the sequence. The video is a complementary perspective. The written material provides searchable reasoning, safety notes and details that are easy to miss in motion. Learning through all three formats improves the chance that you can recall the process later without copying the instructor mechanically.
How to know you are ready for the next module
Do not use page completion alone as proof of learning. You are ready to move forward when you can summarize the lesson, identify the major risks, explain the order of operations and correctly answer the knowledge check. For practical topics, you should also be able to prepare the workspace and demonstrate the low-risk parts of the workflow without prompts. If you are uncertain, repeat the lesson. Repetition is free, and there is no benefit in rushing into a more difficult procedure with weak fundamentals.
Module 01 completion checklist
Before continuing, confirm that you can state the lesson objective, describe the main hazards, explain the workflow in order, identify which details require exact-model documentation, and describe how you would verify that the device still works correctly after the intervention. Keep your answers specific. “Be careful” is not a useful safety plan; name what you are protecting and what observation would make you stop. “Test the phone” is not a useful test plan; name the functions affected by the work and the original symptom. This level of specificity is what turns information into a usable skill.
100% FREE LESSON
Learn it three ways — at no cost
This lesson combines a detailed written explanation, step-by-step visuals placed beside the instructions, and one focused video lesson. The goal is not just to finish the page — it is to understand the workflow well enough to explain it back and practice it safely.
READClear written reasoning and safety context.
SEEVisuals directly beside each step.
WATCHOne complete video — no playlist overload.
ONE COMPLETE VIDEO LESSON
Watch the lesson
STEP-BY-STEP VISUAL GUIDE
Safety & Workspace
Follow the explanation and visual together. These fundamentals are intentionally model-neutral; real disassembly or component replacement must use instructions for the exact device model.

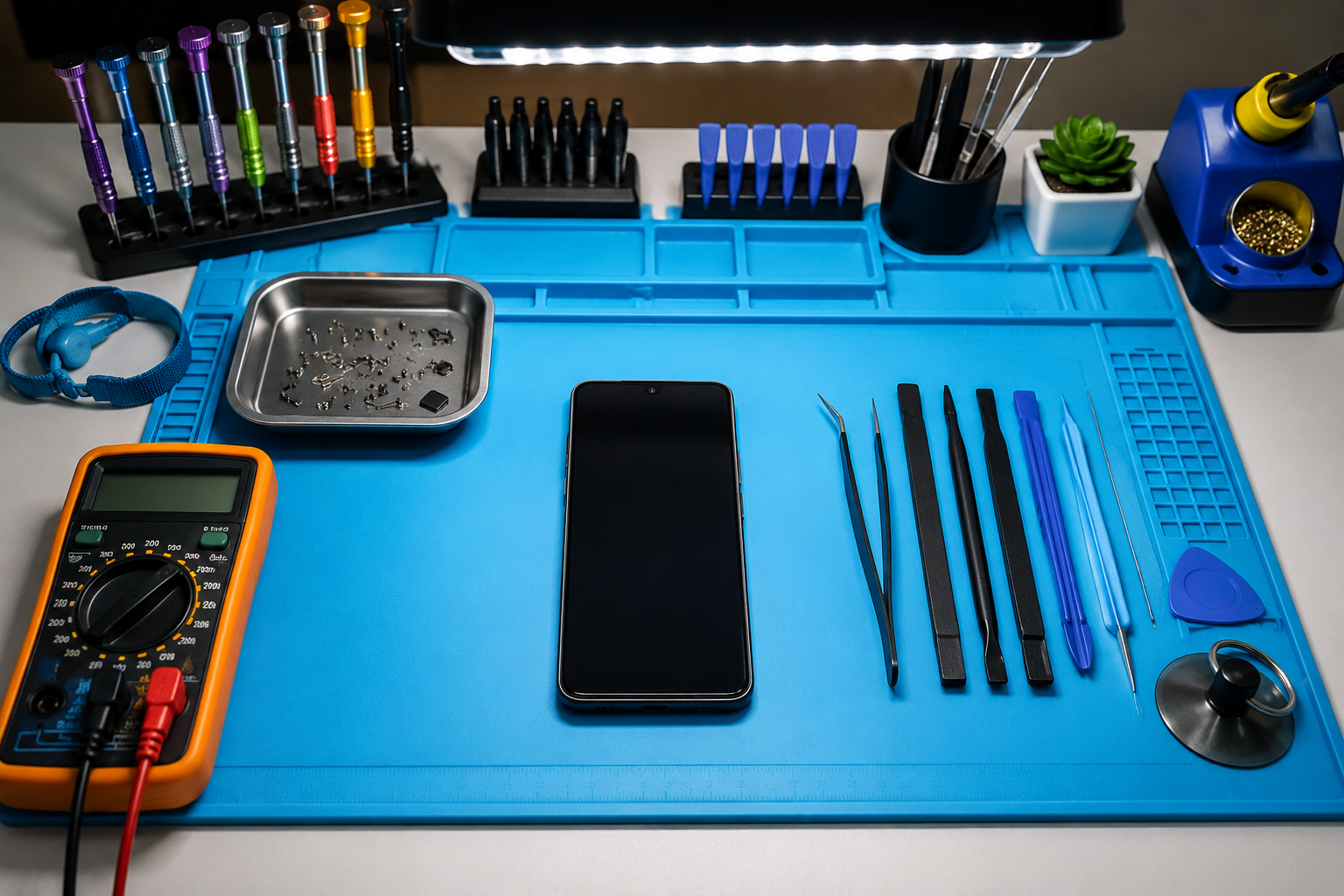

STEP 01
Prepare the bench
Clear the surface, use bright lighting, organize trays, and keep liquids away.
Practice note: Work slowly. If the device layout does not match the lesson, stop and verify the exact model.
STEP 02
Power down
Turn the device off and disconnect chargers or accessories before service.
Practice note: Never substitute force for the correct tool or procedure.

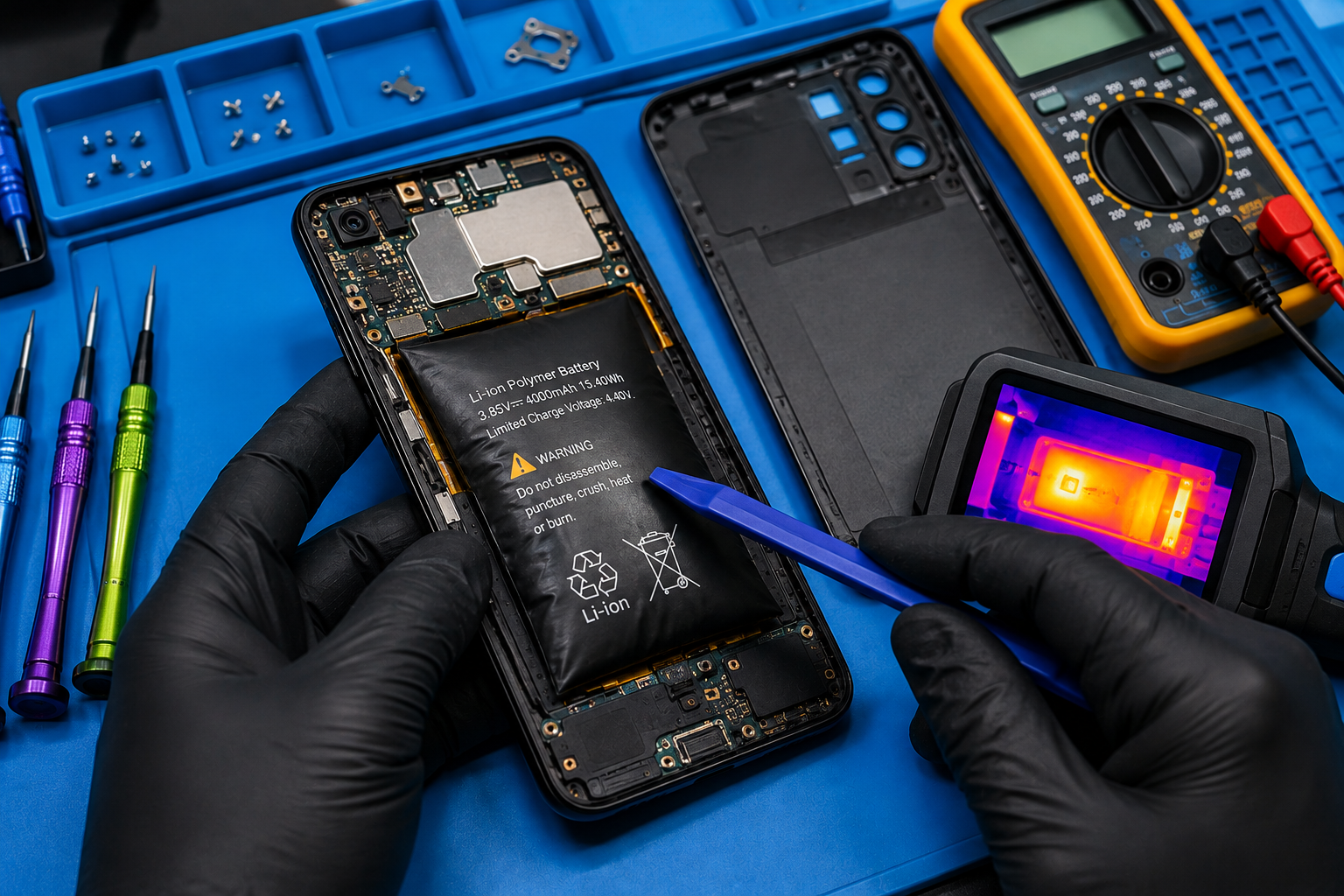

STEP 03
Battery awareness
Inspect for swelling, heat, puncture risk or prior damage before continuing.
Practice note: Keep a simple written record of what you observed before moving to the next step.
What you should be able to do after this lesson
Explain the purpose of the steps in your own words.
Recognize the main safety or quality risks covered here.
Apply the workflow to a supervised or appropriate practice scenario.
Know when model-specific documentation or professional assistance is required.
Safety: Do not treat a generic lesson as a model-specific service manual. Lithium-ion batteries, damaged devices, mains-powered equipment and board-level work can create fire, electrical or chemical hazards. Stop when the procedure exceeds your training, tools or safe workspace.
